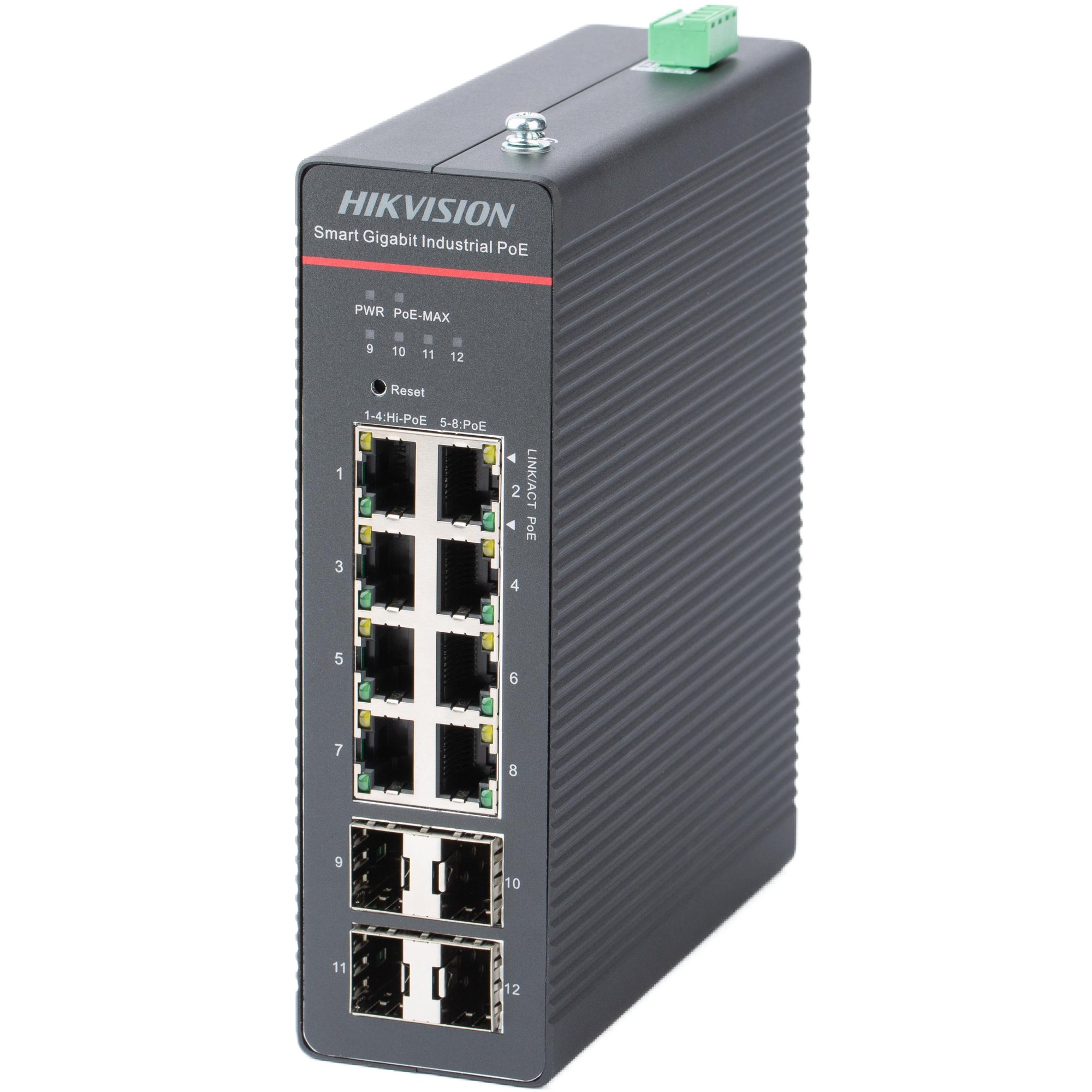

DS-3T1512HP-SI-8P4F(O-STD)KIT(240W) — 8-Port Gigabit Smart Managed Industrial PoE Switch
5 Stück sofort lieferbar
65 Stück lieferbar in 10-20 Tagen
Tagesaktueller Lagerbestand. Zwischenverkauf vorbehalten.
Artikel-Nr.:
301803727
Kernnutzen
Der DS-3T1512HP-SI-8P4F(O-STD)KIT(240W) ist ein industrieller 12-Port Gigabit Smart Managed PoE-Switch, der hohe PoE-Leistung mit robuster Hardware für Außen- und Industrieeinsatz kombiniert. Ideal, um leistungsstarke Kameras, PTZ-Systeme und Access Points über ein einziges Kabel mit Strom und Daten zu versorgen.
Highlights
- Power over Ethernet (PoE, IEEE 802.3af/at/bt): Ports 1-4 Hi-PoE bis 90 W, Ports 5-8 PoE+ bis 30 W
- 300 W Gesamtbudget für gleichzeitige Versorgung mehrerer PoE-Endgeräte
- 4× Gigabit SFP-Ports für störungsfreie Backbone-Verbindungen
- Long-Distance-Funktion bis 300 m (im LD-Modus auf 10 Mbit/s reduziert)
- Industriedesign: Betriebstemperatur von -40 bis +75 C und 6 kV Überspannungsschutz
Technische Details
- 8× Gigabit RJ45 PoE-Ports (Ports 1-4: Hi-PoE 90 W, Ports 5-8: PoE+ 30 W)
- 4× Gigabit SFP für Glasfaser-Backbone
- 300 W PoE-Gesamtbudget
- Long-Distance bis 300 m (10 Mbit/s im LD-Modus)
- Smart Managed Funktionalität: 802.1Q VLAN, QoS, SNMP, DHCP-Snooping, Webkonfiguration
- Netzwerksicherheit: STP/RSTP/ERPS, Storm Control, intelligente Kabelerkennung
- Montage: 19" Rackmount oder Desktop
Einsatzbereiche
- Industrielle Videoüberwachung mit PTZ- und Hi-PoE-Kameras
- Außeninstallationen und rauer Industrieeinsatz
- Campus- und Unternehmensnetze mit Glasfaser-Backbone
- Versorgung von Access Points, VoIP-Stationen und IoT-Geräten mit hohem Leistungsbedarf
Downloads
Eigenschaften "DS-3T1512HP-SI-8P4F(O-STD)KIT(240W) — 8-Port Gigabit Smart Managed Industrial PoE Switch"
| ACL: | Support ACL definitions based on source/destination MAC address, source/destination IP address, IP protocol type. |
|---|---|
| Bauform: | Rackmount |
| Chemistry: | CE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006) |

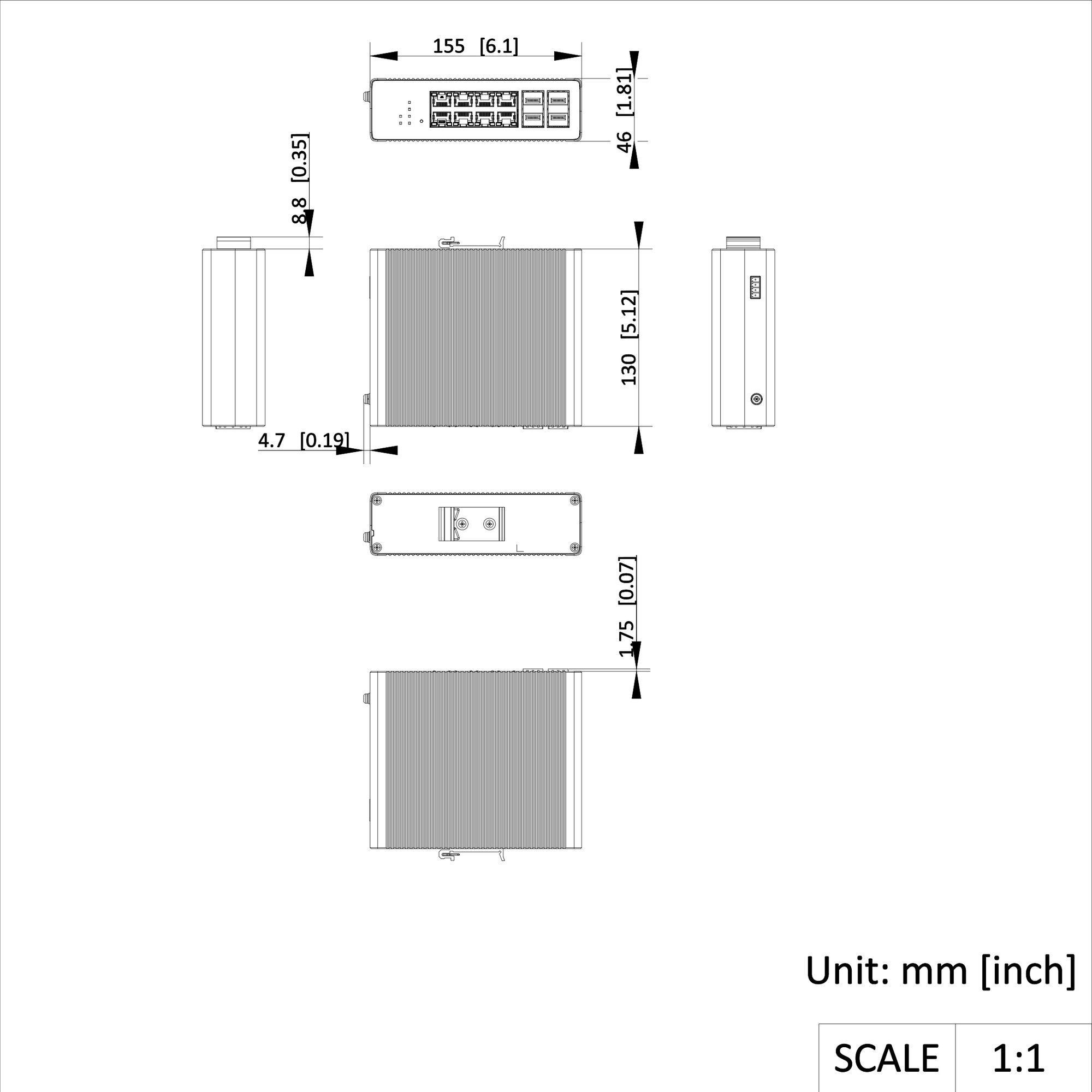

| Dimension (W × H × D): | 155,00 mm × 46,00 mm × 130,00 mm (6.10'' × 1.81'' × 5.12'') |
| Farbe: | Weiß / White |
| Gerätetyp: | Netzwerk-Switch |
| Gross Weight: | 1,16 kg |
| HPP: | Support one-click activation and remote management via Hik-Partner Pro. Functions supported: |
| IGMP Snooping: | / |
| IPSG: | IPSG can control the security of port access device. Support port, MAC, IP binding. Support 256 security entries. |
| Industriell: | Ja |
| Installation Mode: | Desk-Mounted,Rail |
| Internal Cache: | 4.1 Mbits |
| Long Range: | Ports 1 bis 8: bis zu 300 m. Long range performance may vary depend on camera model or cable condition. |
| MAC Address Table: | 8 K |
| Management: | Smart Managed |
| Max. Port Power: | Ports 1 bis 4: 90 W Ports 5 bis 8: 30 W |
| Max. Power Consumption: | 307 W |
| NDAA Konform: | Nein |
| Net Weight: | 0,84 kg |
| Operating Humidity: | 5% bis 95% (no condensation) |
| Operating Temperature: | - 40 °C bis 75 °C |
| Packet Forwarding Rate: | Whole-Device Performance: 41.66 Mpps Port Performance: 17.86 Mpps |
| PoE: | Ja |
| PoE-Anschlüsse Anzahl: | 8 |
| PoE-Leistungsbudget: | 300 W |
| PoE-Norm: | IEEE 802.3af/at/bt |
| PoE-Ports 802.3af: | 8 |
| PoE-Ports 802.3af (Bereich): | 1-8 |
| PoE-Ports 802.3at: | 8 |
| PoE-Ports 802.3at (Bereich): | 1-8 |
| PoE-Ports 802.3bt: | 4 |
| PoE-Ports 802.3bt (Bereich): | 1-4 |
| PoE Port: | Hi-PoE: Ports 1 bis 4 PoE: Ports 5 bis 8 |
| PoE Power Budget: | 300 W |
| PoE Power Pin: | Ports 1 bis 4: 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-) Ports 5 bis 8: End-span: 1/2(-), 3/6(+) |
| PoE Standard: | Ports 1 bis 4: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt Ports 5 bis 8: IEEE 802.3af, IEEE 802.3at |
| PoE Watchdog: | Ports 1 bis 8: auto detect and restart the cameras that do not respond. |
| Port-Anzahl: | 12 |
| Port-Geschwindigkeit: | Gigabit |
| Port Isolation: | Ports 1 bis 8: port isolation mode to improve network security |
| Port Rate-Limiting: | Port rate-limiting is used for port bandwidth adjustment to prevent network congestion. |
| Ports: | 8 × Gigabit PoE port,4 × Gigabit fiber optical port |
| Power Consumption in Idle: | 7 W |
| QoS: | QoS is used to allocate bandwidth to different services so as to provide end-to-end service quality assurance. |
| Relative Humidity: | 5% bis 95% (no condensation) |
| Safety: | CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition)), CE-LVD (EN 62368-1: 2014+A11: 2017) |
| Shell: | Metal material, IP40 |
| Smart-Managed: | Ja |
| Storage temperature: | - 40 °C bis 85 °C |
| Stromversorgung: | 48~57 V DC, 7,5 A |
| Surge Protection: | 6 KV |
| Switch-Typ: | Industrial |
| Switching Capacity: | Whole-Device Performance: 56 Gbps Port Performance: 24 Gbps |
| System Maintenance: | Support device management via web. |
| VIP Port: | / |
| VLAN: | VLAN is used for network scale planning and network health improvement. |
| Zielgruppe: | Projekt |
