Kompakte PoE-Versorgung für kleine Überwachungs- und WLAN-Netze

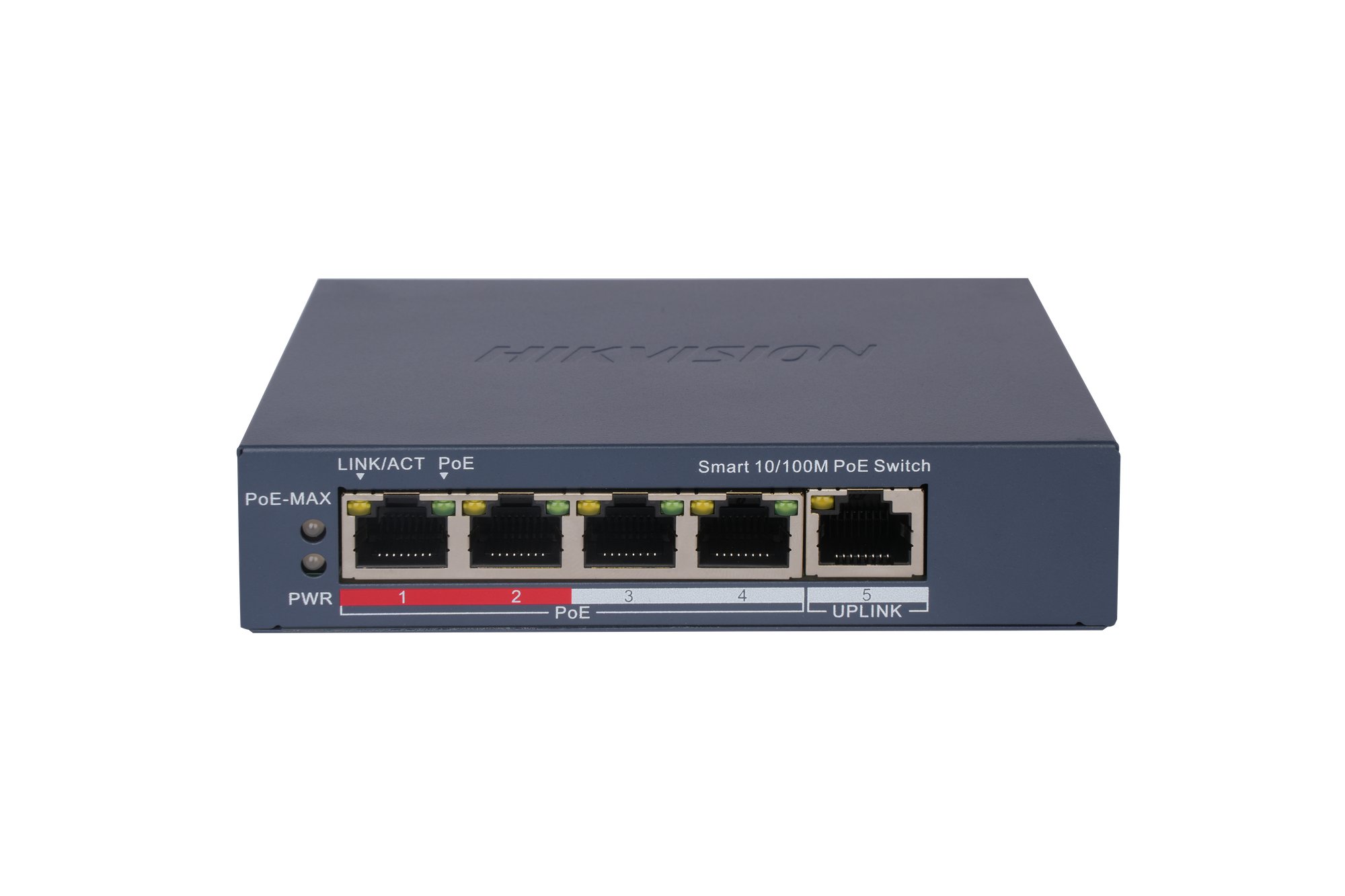

Der Hikvision DS-3E1105P-EI(O-STD)V2 ist ein kompakter Smart-Managed Switch, der bis zu vier Kameras oder Access Points direkt per Power over Ethernet (PoE) mit Strom und Daten versorgt. Ideal für kleine Installationen, bei denen platzsparende Hardware, Long-Distance-Funktion und einfache Verwaltung wichtig sind.

Highlights

  • Power over Ethernet (PoE) nach IEEE 802.3af/at - ein Kabel für Strom und Daten
  • 60 W PoE-Gesamtbudget; bis zu 30 W pro Port
  • Long-Distance-Modus: bis zu 300 m auf Ports 1-4 (Datenrate reduziert auf 10 Mbit/s)
  • Smart-Managed mit Weboberfläche, Topologie- und Statusübersicht und PoE-Watchdog
  • 6 kV Überspannungsschutz und robustes Metallgehäuse

Technische Details

  • Ports: 4 × 10/100 Mbps PoE, 1 × 10/100 Mbps Uplink (RJ45)
  • Switching Capacity 1 Gbps, Forwarding Rate 0,74 Mpps, MAC-Tabelle 2 K
  • PoE-Budget 60 W, Max. Port Power 30 W, PoE Pinning End-span
  • Stromversorgung: 54 VDC, 1,2 A; Max. Leistungsaufnahme 65 W; Power Consumption Idle 0,9 W
  • Abmessungen 121,1 × 27,6 × 83,1 mm; Gewicht netto 0,26 kg
  • Betriebstemperatur 0 °C bis 40 °C; Montage: Desktop oder Wand

Einsatzbereiche

  • Kleine Überwachungszellen: bis zu 4 Kameras an einer kompakten PoE-Lösung
  • Außenstellen und Gebäudeecken mit begrenztem Platzangebot
  • Versorgung von Access Points in kleinen Büros oder Shops
  • Installationen mit längeren Leitungswegen dank Long-Distance-Modus
Downloads
Eigenschaften "Hikvision DS-3E1105P-EI(O-STD)V2 — 4-Port Smart PoE Switch"
Bauform: Desktop
Chemistry: CE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006)

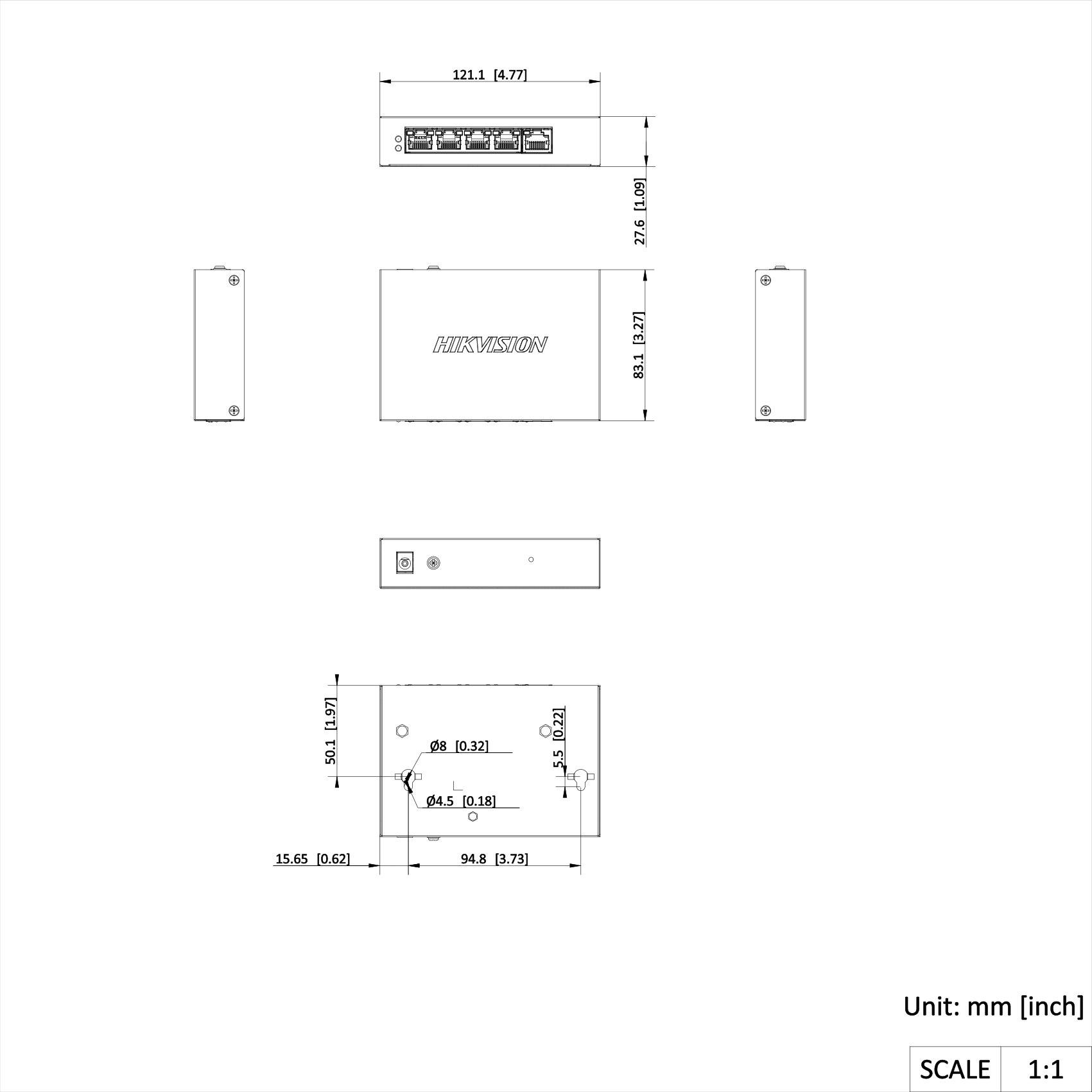

Dimension (W × H × D): 121,1 mm × 27,6 mm × 83,1 mm (4.77'' × 1.09'' × 3.27'')
Farbe: Weiß / White
Gerätetyp: Netzwerk-Switch
Gross Weight: 0,75 kg
HPP: Support one-click activation and remote management via Hik-Partner Pro. Functions supported: 1. Display the port rate.; 2. Display the port bandwid...
Industriell: Nein
Installation Mode: Desk-Mounted,Wall-Mounted
Internal Cache: 768 Kbits
Long Range: Ports 1 bis 4: bis zu 300 m. Long range performance may vary depend on camera model or cable condition.
MAC Address Table: 2 K
Management: Smart Managed
Max. Port Power: 30 W
Max. Power Consumption: 65 W
NDAA Konform: Nein
Net Weight: 0,26 kg
Operating Humidity: 5% bis 95% (no condensation)
Operating Temperature: 0 °C bis 40 °C
Packet Forwarding Rate: 0.74 Mpps
PoE: Ja
PoE-Anschlüsse Anzahl: 4
PoE-Leistungsbudget: 60 W
PoE-Norm: IEEE 802.3af,IEEE 802.3at
PoE-Ports 802.3af: 4
PoE-Ports 802.3af (Bereich): 1-4
PoE-Ports 802.3at: 4
PoE-Ports 802.3at (Bereich): 1-4
PoE Port: PoE: Ports 1 bis 4
PoE Power Budget: 60 W
PoE Power Pin: End-span: 1/2(-), 3/6(+)
PoE Standard: IEEE 802.3af,IEEE 802.3at
PoE Watchdog: Ports 1 bis 4: auto detect and restart the cameras that do not respond.
Port-Anzahl: 5
Port-Geschwindigkeit: 100 Mbit/s
Port Isolation: Ports 1 bis 4: port isolation mode to improve network security; Ports in an isolation group cannot communicate with each other, but they can commu...
Ports: 4 × 10/100 Mbps PoE port,1 × 10/100 Mbps RJ45 port
Power Consumption in Idle: 0,9 W
Relative Humidity: 5% bis 95% (no condensation)
Safety: CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)
Shell: Metal material
Smart-Managed: Ja
Storage temperature: - 40 °C bis 85 °C
Stromversorgung: 54VDC, 1,2 A
Surge Protection: 6 KV
Switch-Typ: Conventional
Switching Capacity: 1 Gbps
System Maintenance: Support device management via web.; Support DHCP Client. Enabled by default for dynamic assignment of management IP addresses.; Support Super IP, w...
VIP Port: Ports 1 bis 2: data on VIP ports is preferentially forwarded when bandwidth resources are insufficient.
VLAN: VLAN is used for network scale planning and network health improvement.; Support 802.1Q.; Configurable VLAN ID from 1-4094.; Support Trunk, Access ...
Zielgruppe: Distribution
