Hikvision DS-3E1326P-EI(O-STD)V2 — 24-Port Fast Ethernet PoE+ Switch
26-Port PoE+ Switch für Videoüberwachung
Der Hikvision DS-3E1326P-EI(O-STD)V2 ist ein Smart Managed Switch, der speziell für mittlere bis größere IP-Videoanlagen konzipiert ist. Mit 24 PoE+-Ports und 370 W Gesamtbudget versorgt er Kameras direkt per Netzwerkkabel; zwei Gigabit-Uplinks ermöglichen schnelle Anbindung an das Kernnetz.
Highlights
- 26-Port Ausführung: 24×PoE+ für Endgeräte + 2×Gigabit Uplink (RJ45/SFP)
- 370 W PoE-Gesamtbudget: Versorgt bis zu 24 Kameras gleichzeitig
- Long-Range PoE: Reichweiten bis 300 m möglich (Performance kann je nach Kameramodell und Kabelqualität variieren)
- PoE-Watchdog: Erkennt hängende Geräte und startet sie automatisch neu
- Smart Management: Weboberfläche, STP/RSTP Loop Prevention und Kabeldiagnose
Technische Details
- 24× 10/100 Mbit/s PoE+ Ports (802.3af/at)
- 2× Gigabit Combo-Ports (RJ45/SFP) für Uplink
- PoE-Gesamtleistung: 370 W
- Long-Range PoE bis 300 m
- Überspannungsschutz 6 kV an PoE-Ports
- 19"-Rack-Montage oder Desktop-Aufstellung, lüfterlos
Einsatzbereiche
Ideal für mittlere Überwachungsanlagen, Lagerhallen, Parkflächen und Bürostandorte. Besonders geeignet, wenn längere Kabelstrecken benötigt werden oder hohe Verfügbarkeit durch PoE-Watchdog gefordert ist.
Downloads
Eigenschaften "Hikvision DS-3E1326P-EI(O-STD)V2 — 24-Port Fast Ethernet PoE+ Switch"
| ACL: | \ |
|---|---|
| Bauform: | Rackmount |
| Chemistry: | CE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006) |
| DHCP Snooping: | \ |

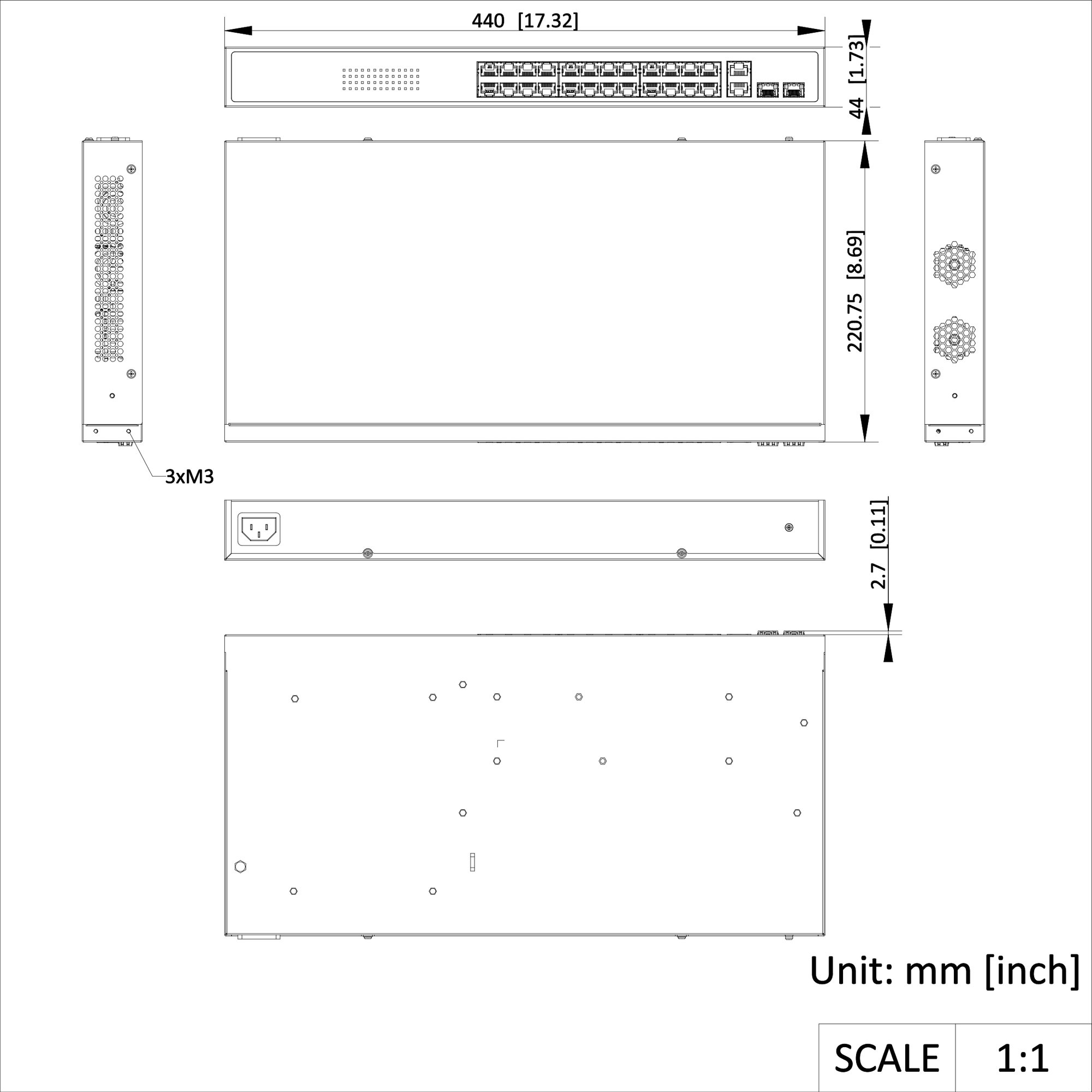

| Dimension (W × H × D): | 440,00 mm × 44,00 mm × 220,80 mm (17.32'' × 1.73'' × 8.69'') |
| Farbe: | Weiß / White |
| Gerätetyp: | Netzwerk-Switch |
| Gross Weight: | 3,8 kg |
| HPP: | Support one-click activation and remote management via Hik-Partner Pro. Functions supported: 1. Display the port rate.; 2. Display the port bandwid... |
| IGMP Snooping: | \ |
| IPSG: | \ |
| Industriell: | Nein |
| Installation Mode: | Rack (equipped with mounting ears) |
| Internal Cache: | 4 Mbits |
| Long Range: | Ports 1 bis 24: bis zu 300 m. Long range performance may vary depend on camera model or cable condition. |
| MAC Address Table: | 16 K |
| Management: | Smart Managed |
| Max. Port Power: | 30 W |
| Max. Power Consumption: | 400 W |
| NDAA Konform: | Nein |
| Net Weight: | 2,83 kg |
| Operating Humidity: | 5% bis 95% (no condensation) |
| Operating Temperature: | 0 °C bis 45 °C |
| Packet Forwarding Rate: | Whole-Device Performance: 11.01 Mpps Port Performance: 6.55 Mpps |
| PoE: | Ja |
| PoE-Anschlüsse Anzahl: | 24 |
| PoE-Leistungsbudget: | 370 W |
| PoE-Norm: | IEEE 802.3af/at |
| PoE-Ports 802.3af: | 24 |
| PoE-Ports 802.3af (Bereich): | 1-24 |
| PoE-Ports 802.3at: | 24 |
| PoE-Ports 802.3at (Bereich): | 1-24 |
| PoE Port: | PoE: Ports 1 bis 24 |
| PoE Power Budget: | 370 W |
| PoE Power Pin: | 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-) |
| PoE Standard: | IEEE 802.3af,IEEE 802.3at |
| PoE Watchdog: | Ports 1 bis 24: auto detect and restart the cameras that do not respond. |
| Port-Anzahl: | 26 |
| Port-Geschwindigkeit: | 100M/1G Mixed |
| Port Isolation: | Ports 1 bis 24: port isolation mode to improve network security; Ports in an isolation group cannot communicate with each other, but they can comm... |
| Port Rate-Limiting: | \ |
| Ports: | 24 × 10/100 Mbps PoE port,2 × Gigabit combo |
| Power Consumption in Idle: | 30 W |
| QoS: | \ |
| Relative Humidity: | 5% bis 95% (no condensation) |
| Safety: | CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition)), CE-LVD (EN 62368-1: 2014+A11: 2017) |
| Shell: | Metal material |
| Smart-Managed: | Ja |
| Storage temperature: | - 40 °C bis 85 °C |
| Storm Control: | \ |
| Stromversorgung: | 100-240 VAC, 50/60 Hz, Max. 6,3 A |
| Surge Protection: | 6 KV |
| Switch-Typ: | Conventional |
| Switching Capacity: | Whole-Device Performance: 14.8 Gbps Port Performance: 8.8 Gbps |
| System Maintenance: | Support DHCP Client. Enabled by default for dynamic assignment of management IP addresses.; Support Super IP, which is a fixed IP address (10.180.1... |
| VIP Port: | Ports 1 bis 8: data on VIP ports is preferentially forwarded when bandwidth resources are insufficient. |
| VLAN: | / |
| Zielgruppe: | Distribution |
