Hikvision DS-3E1526P-SI(O-STD) — 24-Port Gigabit Smart PoE Switch mit SFP
24×Gigabit PoE für Videoüberwachungsprojekte
Der DS-3E1526P-SI(O-STD) ist ein Smart-Managed Rackmount-Switch, der bis zu 24 Kameras oder Access Points direkt per Power over Ethernet (PoE) versorgt. Mit 370 W PoE-Budget, PoE-Watchdog und 6 kV Überspannungsschutz bietet er zuverlässige Stromversorgung und Schutz für professionelle Installationen.
Highlights
- 24×Gigabit PoE-Ports (Ports 1-24) und 2×Gigabit SFP-Uplinks
- Power over Ethernet (IEEE 802.3af/at) mit 370 W Gesamtbudget
- PoE Watchdog für automatischen Neustart nicht reagierender Kameras
- Long-Range bis 300 m auf PoE-Ports (bei reduzierter Datenrate 10 Mbit/s)
- 6 kV Überspannungsschutz auf PoE-Ports und Port-Isolation
- Smart-Managed: VLAN, STP/RSTP, Link-Aggregation, SNMP, QoS
Technische Details
- Switch-Typ: Conventional, Smart-Managed
- Ports: 24×Gigabit PoE, 2×Gigabit SFP
- PoE-Standard: IEEE 802.3af/at; Max. Port Power 30 W
- PoE-Budget: 370 W; Max. Leistungsaufnahme: 400 W
- Switching Capacity: 56 Gbps; Packet Forwarding Rate: 41.66 Mpps; MAC Table: 8 K
- Sicherheit & Schutz: 6 kV Surge Protection (PoE), Port Isolation
- Bauform: Rackmount, Metallgehäuse; Maße: 440 × 44 × 221 mm; Gewicht: 2.975 kg netto
- Betriebsbedingungen: 0 C bis 45 C, 5%-95% rF (keine Kondensation)
Einsatzbereiche
- Mittelgroße bis große Videoüberwachungsprojekte
- Gebäudevernetzung mit PoE-Kameras und Access Points
- Standorte mit längeren Kabelstrecken dank Long-Range-Modus
- Netzwerk-Setups, die VLAN-, QoS- und SNMP-Management erfordern
Downloads
Eigenschaften "Hikvision DS-3E1526P-SI(O-STD) — 24-Port Gigabit Smart PoE Switch mit SFP"
| Bauform: | Rackmount |
|---|---|
| Chemistry: | CE-RoHS (201165EU); WEEE (201219EU); Reach (Regulation (EC) No.19072006) |

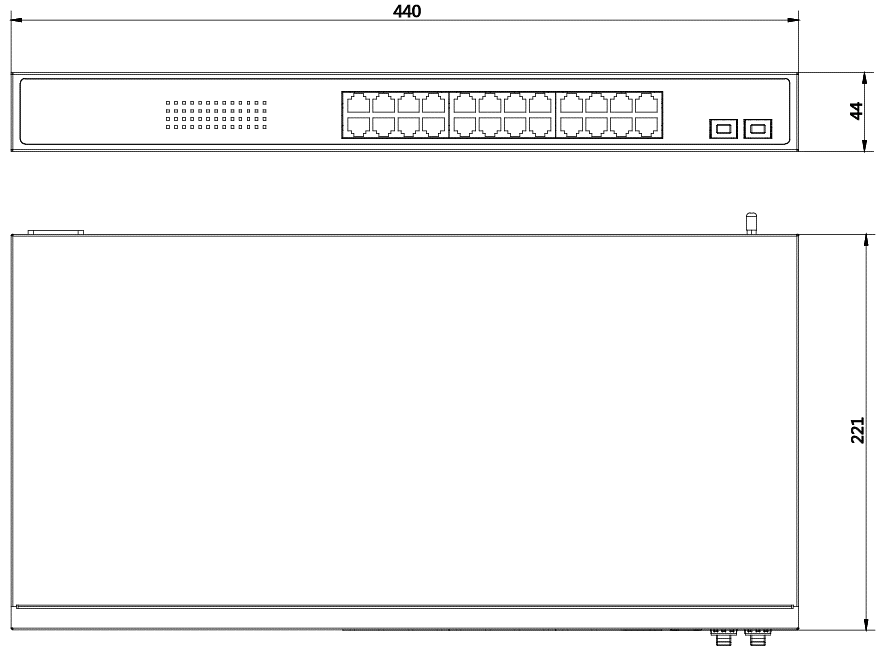

| Dimension (W × H × D): | 440,00 mm × 44,00 mm × 221,00 mm (17.32'' × 1.73'' × 8.70'') |
| EMC: | FCC (47 CFR Part 15, Subpart B); |
| Farbe: | Weiß / White |
| Gerätetyp: | Netzwerk-Switch |
| Gross Weight: | 3.535 kg |
| HPP: | Support one-click activation and remote management via Hik-Partner Pro. Functions supported: 1. Display the port rate.; 2. Display the port bandwid... |
| Industriell: | Nein |
| Installation Mode: | Rack (equipped with mounting ears) |
| Internal Cache: | 4.1 Mbits |
| Long Range: | Ports 1 bis 24: bis zu 300 m. Long range performance may vary depend on camera model or cable condition. |
| MAC Address Table: | 8 K |
| Management: | Smart Managed |
| Max. Port Power: | 30 W |
| Max. Power Consumption: | 400 W |
| NDAA Konform: | Nein |
| Net Weight: | 2.975 kg |
| Operating Humidity: | 5% bis 95% (no condensation) |
| Operating Temperature: | 0 °C bis 45 °C |
| Packet Forwarding Rate: | 41.66 Mpps |
| PoE: | Ja |
| PoE-Anschlüsse Anzahl: | 24 |
| PoE-Leistungsbudget: | 370 W |
| PoE-Norm: | IEEE 802.3af,IEEE 802.3at |
| PoE-Ports 802.3af: | 24 |
| PoE-Ports 802.3af (Bereich): | 1-24 |
| PoE-Ports 802.3at: | 24 |
| PoE-Ports 802.3at (Bereich): | 1-24 |
| PoE Port: | PoE: Ports 1 bis 24 |
| PoE Power Budget: | 370 W |
| PoE Power Pin: | End-span: 1/2(+), 3/6(-); |
| PoE Standard: | IEEE 802.3af,IEEE 802.3at |
| PoE Watchdog: | Ports 1 bis 24: auto detect and restart the cameras that do not respond. |
| Port-Anzahl: | 26 |
| Port-Geschwindigkeit: | Gigabit |
| Port Isolation: | Ports 1 bis 24: port isolation mode to improve network security.; Ports in an isolation group cannot communicate with each other, but they can com... |
| Port Rate-Limiting: | Port rate-limiting is used for port bandwidth adjustment to prevent network congestion. |
| Ports: | 24 × Gigabit PoE port,2 × Gigabit fiber optical port |
| Power Consumption in Idle: | 30 W |
| QoS: | QoS is used to allocate bandwidth to different services so as to provide end-to-end service quality assurance.; Support port-based priority configu... |
| Relative Humidity: | 5% bis 95% (no condensation) |
| Safety: | UL (UL 60950-1);; CB (IEC 60950-1:2005, AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition);; CE-LVD (EN 60950-1: 2006 + A11: 2009 +A1: 201... |
| Shell: | Metal material |
| Smart-Managed: | Ja |
| Storage temperature: | - 40 °C bis 85 °C |
| Stromversorgung: | 100 bis 240 VAC, 50/60 Hz, Max. 6,3 A |
| Surge Protection: | 6 KV |
| Switch-Typ: | Conventional |
| Switching Capacity: | 56 Gbps |
| VLAN: | VLAN is used for network scale planning and network health improvement.; Support 802.1Q.; Configurable VLAN ID from 1-4094.; Support Trunk, Access ... |
| Zielgruppe: | Projekt |
